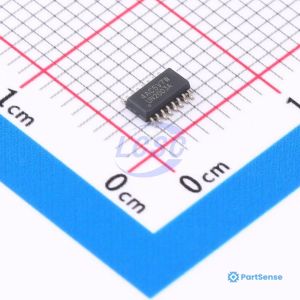

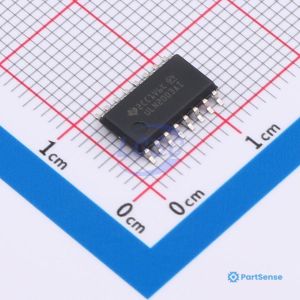

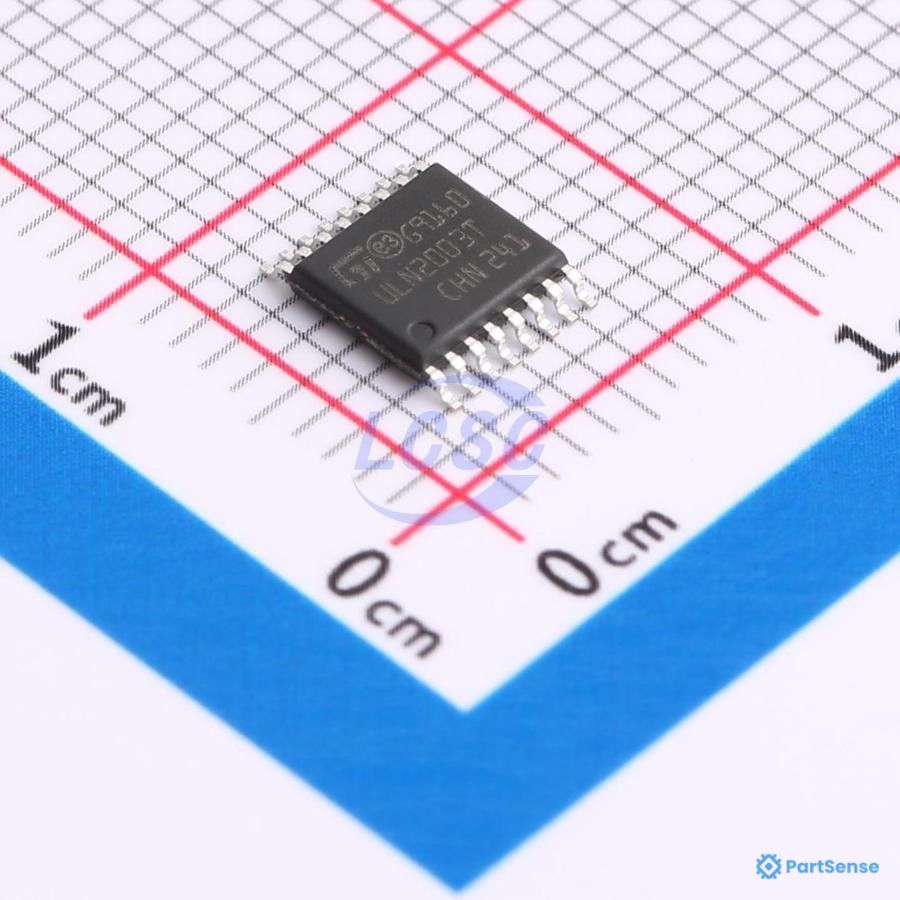

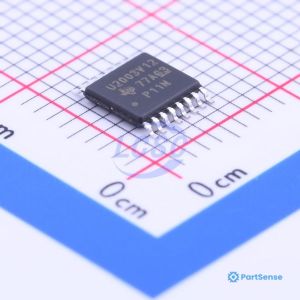

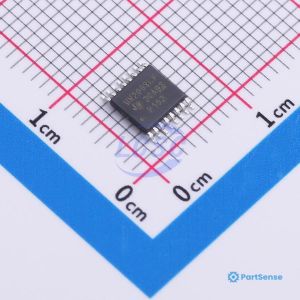

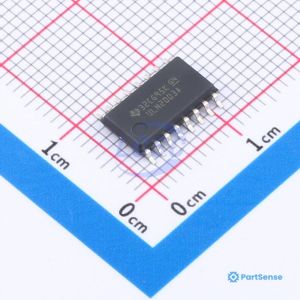

Bipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Surface Mount 16-TSSOP
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Number of Channels |
Seven channels
|
|
| Collector Current |
500mA; 50µA
|
|
| Input Voltage |
30V
|
|
| Reverse leakage current |
50µA
|
|
| Collector-Emitter Saturation Voltage |
1.6V
|
|
| Input Current |
930µA
|
|
| Forward Voltage |
1.7V
|
|
| Input capacitiance |
15pF
|
|
| Type |
BJT
|
|
| Polarity |
Dual NPN
|
|
| Package |
16-TSSOP; 16-TSSOP (0.173", 4.40mm Width); TSSOP
|
|
| DC Current Gain |
1000 hFE
|
|
| Pin Count |
16
|
|
| Collector-Emitter Voltage |
50V
|
|
| Temperature |
-40°C to 85°C; 85°C
|
|
| Mounting Type |
SMD
|
|
| Transistor Type |
7 NPN Darlington
|
|
| Vce saturation @ ib, ic |
1.6V@500µA, 350mA
|
