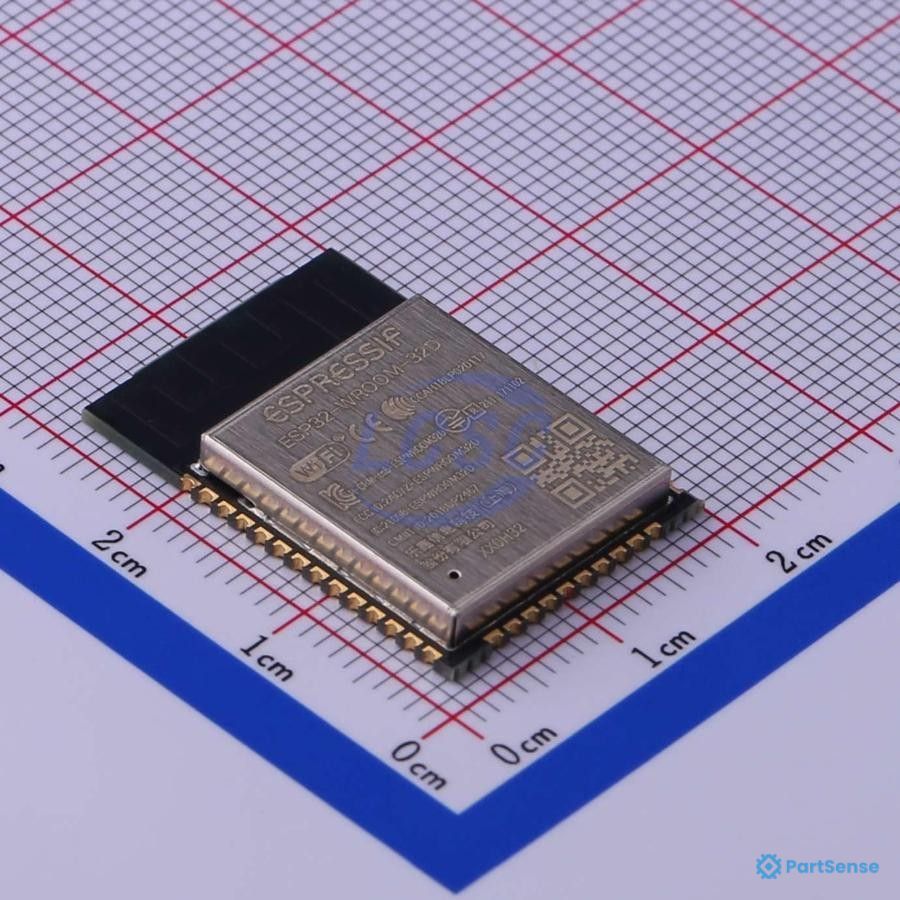

Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 Transceiver Module 2.4GHz ~ 2.5GHz Integrated, Trace Surface Mount
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Components |
ESP32-DOWD
|
|
| RF Family/Standard |
Bluetooth4.2; WiFi
|
|
| Interface |
2 and 3; 802.11b/g/n; Bluetooth v4.2 +EDR; Class 1; GPIO; I2C; I2S; IR; PWM; SD; SDIO; SPI; UART
|
|
| Value |
2.4GHz
|
|
| Features |
On-board PCB Antenna
|
|
| Transmitting Power |
20.5dBm
|
|
| Input Voltage |
2.7V to 3.6V
|
|
| Sensitivity |
-98dBm; b: -91 dBm; g: -75 dBm
|
|
| Temperature |
-40°C to 85°C
|
|
| Type of communications module |
IoT
|
|
| Bluetooth version |
BLE
|
|
| Kind of network |
WiFi
|
|
| Kind of antenna |
PCB
|
|
| Mounting Type |
SMD
|
|
| Dimensions |
18mm × 25.5mm × 3.1mm
|
|
| Frequency |
2.412GHz to 2.484GHz; 2.4GHz to 2.5GHz
|
|
| Program storage size |
448kB ROM; 4MB FLASH
|
|
| RAM Size |
448kB ROM; 536kB SRAM
|
|
| Number of cores |
2
|
|
| Modulation |
CCK; DSSS; OFDM
|
|
| Data Rate |
150Mbps
|
|
| Type |
Integrated; Trace
|
|
| Package |
38-SMD Module
|
Document details will be displayed in this section.
Compare prices across distributors
| Quantity | LCSC | DigiKey | TME |
|---|---|---|---|
| 1 |
$3.9443
Total: $3.94
|
Not Available
at this quantity
|
$4.17
Total: $4.17
|
| 5 |
$3.9443
Total: $19.72
|
Not Available
at this quantity
|
$4.09
Total: $20.45
|
| 10 |
$3.4468
Total: $34.47
|
Not Available
at this quantity
|
$4.09
Total: $40.90
|
| 25 |
$3.4468
Total: $86.17
|
Not Available
at this quantity
|
$3.95
Total: $98.75
|
| 30 |
$3.1923
Total: $95.77
|
Not Available
at this quantity
|
$3.95
Total: $118.50
|
| 100 |
$2.8524
Total: $285.24
|
Not Available
at this quantity
|
$3.78
Total: $378.00
|
| 650 |
$2.7292
Total: $1773.98
|
Not Available
at this quantity
|
$3.64
Total: $2366.00
|
| 1,300 |
$2.6766
Total: $3479.58
|
Not Available
at this quantity
|
$3.44
Total: $4472.00
|
| 6,500 |
$2.6766
Total: $17397.90
|
$4.1888
Total: $27227.20
|
$3.44
Total: $22360.00
|
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $3.9443 | $3.94 |
| 10 | $3.4468 | $34.47 |
| 30 | $3.1923 | $95.77 |
| 100 | $2.8524 | $285.24 |
| 650 | $2.7292 | $1773.98 |
| 1300 | $2.6766 | $3479.58 |
| Qty | Unit Price | Total |
|---|---|---|
| 6500 | $4.1888 | $27227.20 |
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $4.17 | $4.17 |
| 5 | $4.09 | $20.45 |
| 25 | $3.95 | $98.75 |
| 100 | $3.78 | $378.00 |
| 650 | $3.64 | $2366.00 |
| 1300 | $3.44 | $4472.00 |
