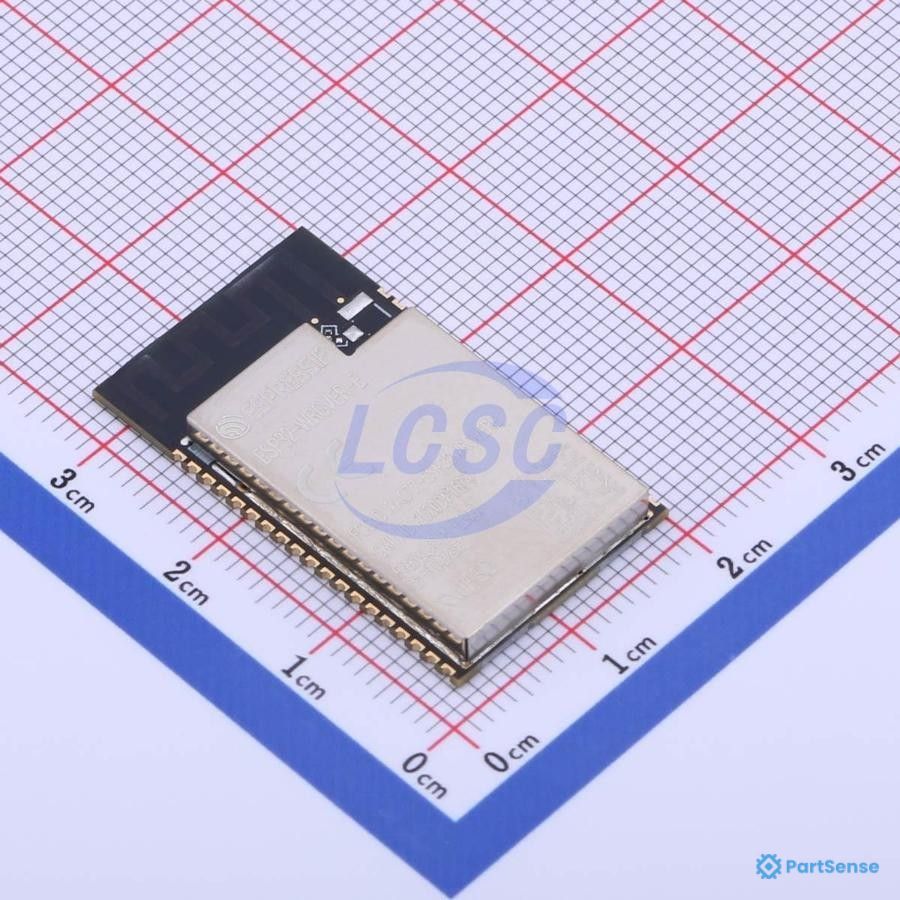

Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 +EDR Transceiver Module 2.4GHz ~ 2.5GHz PCB Trace Surface Mount
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Type of communications module |
IoT
|
|
| Bluetooth version |
BLE
|
|
| Transmitting Power |
19.5dBm; 20.5dBm
|
|
| Kind of network |
WiFi
|
|
| Kind of antenna |
PCB
|
|
| Input Voltage |
3V to 3.6V
|
|
| Interface |
802.11b/g/n; ADC; Bluetooth v4.2 +EDR; CAN; DAC; GPIO; I2C x2; I2S x2; JTAG; PCM; PWM; SDIO; SPI x3; UART x3
|
|
| Mounting Type |
SMD
|
|
| Dimensions |
18mm × 31.4mm × 3.3mm
|
|
| Frequency |
2.412GHz to 2.484GHz; 2.4GHz to 2.5GHz
|
|
| Sensitivity |
-97dBm; -98dBm
|
|
| Memory |
448kB ROM; 4MB FLASH; 8MB PSRAM; 8MB SRAM
|
|
| Components |
ESP32-D0WD-V3; ESP32-DOWD-V3
|
|
| Number of cores |
2
|
|
| RF Family/Standard |
Bluetooth4.2; WiFi
|
|
| Value |
2.4GHz
|
|
| Features |
On-board PCB Antenna
|
|
| Receiving Current |
108mA; 108mA to 113mA
|
|
| Send current |
350mA
|
|
| Temperature |
-40°C to 85°C
|
|
| Modulation |
CCK; DSSS; OFDM
|
|
| Data Rate |
150Mbps
|
|
| Type |
PCB Trace
|
|
| Program storage size |
4MB Flash
|
|
| RAM Size |
8MB SRAM
|
|
| Transmitting Current |
229mA to 350mA
|
|
| Package |
38-SMD Module
|
Document details will be displayed in this section.
Compare prices across distributors
| Quantity | LCSC | DigiKey | TME |
|---|---|---|---|
| 1 |
$4.8013
Total: $4.80
|
$5.43
Total: $5.43
|
$4.97
Total: $4.97
|
| 10 |
$4.2637
Total: $42.64
|
$4.703
Total: $47.03
|
$4.31
Total: $43.10
|
| 25 |
$4.2637
Total: $106.59
|
$4.4492
Total: $111.23
|
$4.07
Total: $101.75
|
| 30 |
$3.9437
Total: $118.31
|
$4.4492
Total: $133.48
|
$4.07
Total: $122.10
|
| 100 |
$3.6773
Total: $367.73
|
$4.0995
Total: $409.95
|
$3.76
Total: $376.00
|
| 250 |
$3.6773
Total: $919.33
|
$3.89008
Total: $972.52
|
$3.57
Total: $892.50
|
| 650 |
$3.4987
Total: $2274.16
|
$3.68846
Total: $2397.50
|
$3.38
Total: $2197.00
|
| 1,300 |
$3.4175
Total: $4442.75
|
$3.55221
Total: $4617.87
|
$3.38
Total: $4394.00
|
| 1,950 |
$3.4175
Total: $6664.13
|
$3.47622
Total: $6778.63
|
$3.19
Total: $6220.50
|
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $4.8013 | $4.80 |
| 10 | $4.2637 | $42.64 |
| 30 | $3.9437 | $118.31 |
| 100 | $3.6773 | $367.73 |
| 650 | $3.4987 | $2274.16 |
| 1300 | $3.4175 | $4442.75 |
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $5.43 | $5.43 |
| 10 | $4.703 | $47.03 |
| 25 | $4.4492 | $111.23 |
| 100 | $4.0995 | $409.95 |
| 250 | $3.89008 | $972.52 |
| 650 | $3.68846 | $2397.50 |
| 1300 | $3.55221 | $4617.87 |
| 1950 | $3.47622 | $6778.63 |
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $4.97 | $4.97 |
| 10 | $4.31 | $43.10 |
| 25 | $4.07 | $101.75 |
| 100 | $3.76 | $376.00 |
| 250 | $3.57 | $892.50 |
| 650 | $3.38 | $2197.00 |
| 1950 | $3.19 | $6220.50 |
