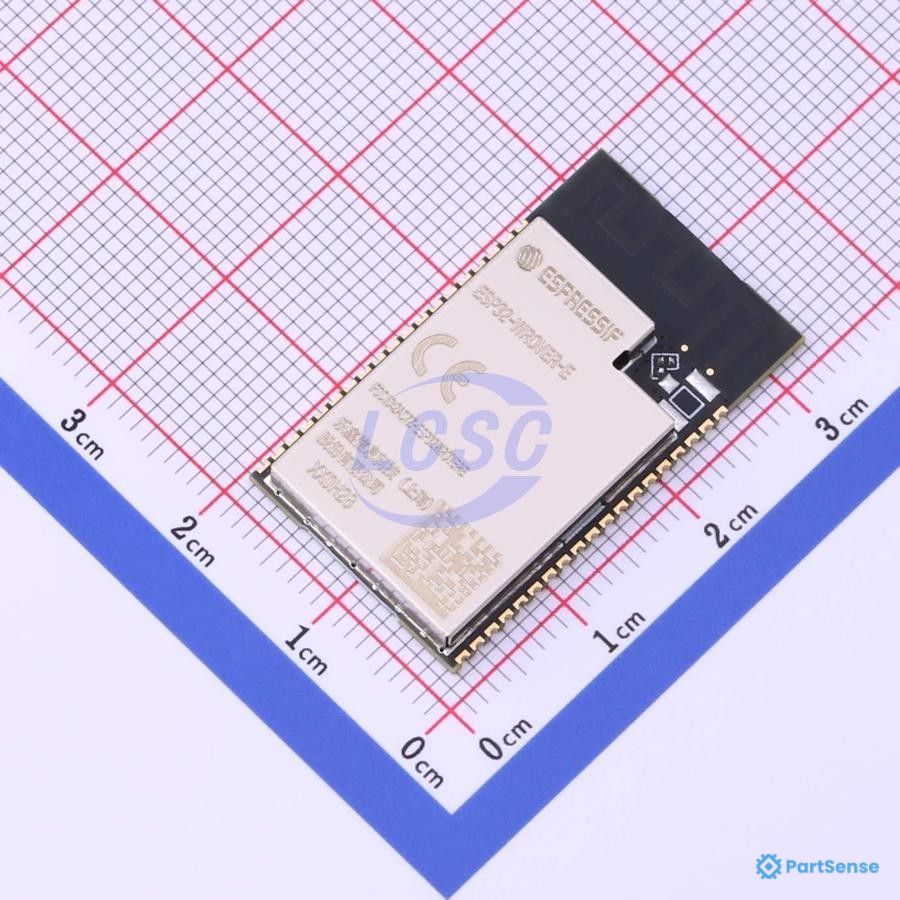

Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 +EDR Transceiver Module 2.4GHz ~ 2.5GHz PCB Trace Surface Mount
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Type of communications module |
IoT
|
|
| Bluetooth version |
BLE
|
|
| Transmitting Power |
19.5dBm; 20.5dBm
|
|
| Kind of network |
WiFi
|
|
| Kind of antenna |
PCB
|
|
| Input Voltage |
3V to 3.6V
|
|
| Interface |
802.11b/g/n; ADC; Bluetooth v4.2 +EDR; GPIO; I2C x2; I2S x2; JTAG; PCM; SDIO; SPI x3; UART x3
|
|
| Mounting Type |
SMD
|
|
| Dimensions |
18mm × 31.4mm × 3.3mm
|
|
| Frequency |
2.412GHz to 2.484GHz; 2.4GHz to 2.5GHz
|
|
| Sensitivity |
-97dBm; -98dBm
|
|
| Memory |
16MB FLASH; 448kB ROM; 8MB PSRAM; 8MB SRAM
|
|
| Components |
ESP32-D0WD-V3
|
|
| Number of cores |
2
|
|
| RF Family/Standard |
Bluetooth4.2; WiFi
|
|
| Value |
2.4GHz
|
|
| Features |
On-board PCB Antenna
|
|
| Receiving Current |
108mA; 108mA to 113mA
|
|
| Send current |
350mA
|
|
| Temperature |
-40°C to 85°C
|
|
| Modulation |
CCK; DSSS; OFDM
|
|
| Data Rate |
150Mbps
|
|
| Type |
PCB Trace
|
|
| Program storage size |
16MB Flash
|
|
| RAM Size |
8MB SRAM
|
|
| Transmitting Current |
229mA to 350mA
|
|
| Package |
38-SMD Module
|
Document details will be displayed in this section.
Compare prices across distributors
| Quantity | LCSC | DigiKey | TME |
|---|---|---|---|
| 1 |
$6.0987
Total: $6.10
|
$6.32
Total: $6.32
|
$5.20
Total: $5.20
|
| 10 |
$5.5568
Total: $55.57
|
$5.473
Total: $54.73
|
$5.20
Total: $52.00
|
| 25 |
$5.5568
Total: $138.92
|
$5.1784
Total: $129.46
|
$5.20
Total: $130.00
|
| 30 |
$4.8995
Total: $146.99
|
$5.1784
Total: $155.35
|
$5.20
Total: $156.00
|
| 100 |
$4.6391
Total: $463.91
|
$4.7741
Total: $477.41
|
$3.93
Total: $393.00
|
| 250 |
$4.6391
Total: $1159.78
|
$4.53184
Total: $1132.96
|
$3.82
Total: $955.00
|
| 650 |
$4.6391
Total: $3015.42
|
$3.28
Total: $2132.00
|
$3.72
Total: $2418.00
|
| 1,300 |
$4.6391
Total: $6030.83
|
$3.28
Total: $4264.00
|
$3.66
Total: $4758.00
|
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $6.0987 | $6.10 |
| 10 | $5.5568 | $55.57 |
| 30 | $4.8995 | $146.99 |
| 100 | $4.6391 | $463.91 |
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $6.32 | $6.32 |
| 10 | $5.473 | $54.73 |
| 25 | $5.1784 | $129.46 |
| 100 | $4.7741 | $477.41 |
| 250 | $4.53184 | $1132.96 |
| 650 | $3.28 | $2132.00 |
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $5.20 | $5.20 |
| 100 | $3.93 | $393.00 |
| 250 | $3.82 | $955.00 |
| 650 | $3.72 | $2418.00 |
| 1300 | $3.66 | $4758.00 |
