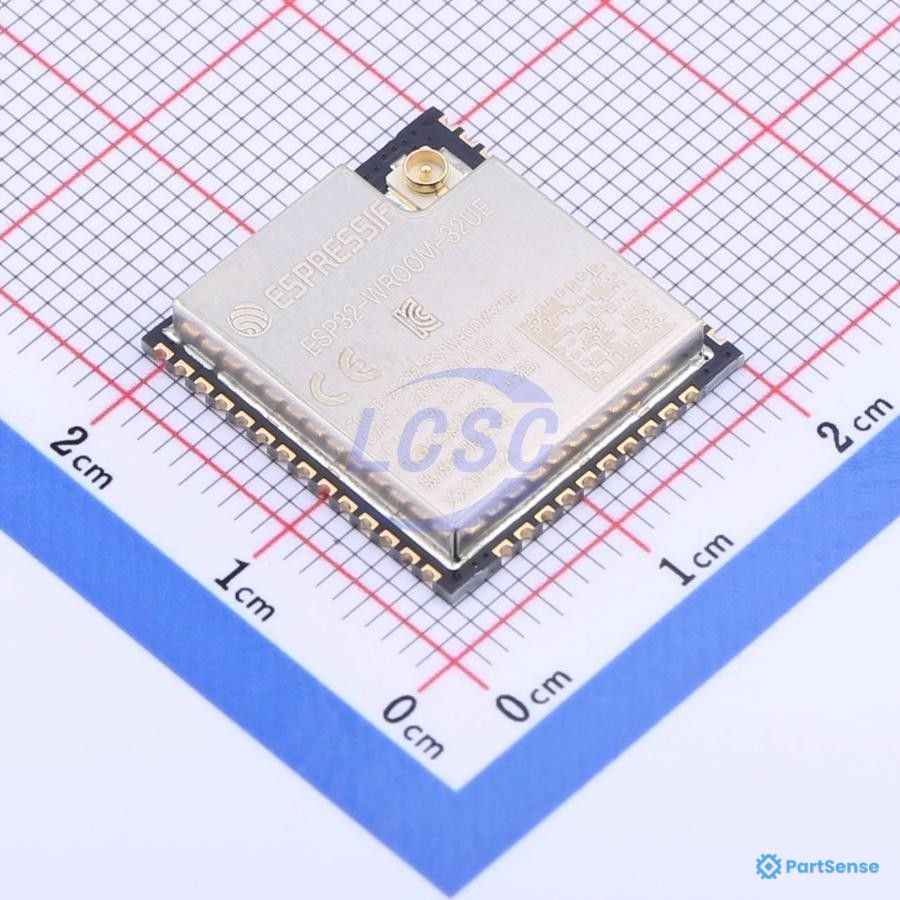

Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 Transceiver Module 2.4GHz ~ 2.5GHz Antenna Not Included, U.FL Surface Mount
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Components |
ESP32-D0WD-V3
|
|
| RF Family/Standard |
Bluetooth4.2; WiFi
|
|
| Interface |
2 and 3; 802.11b/g/n; ADC; Bluetooth v4.2 +EDR; Class 1; GPIO; I2C; I2S; IR; PWM; SDIO; SPI; UART
|
|
| Value |
2.4GHz
|
|
| Transmitting Power |
20dBm
|
|
| Input Voltage |
3V to 3.6V
|
|
| Receiving Current |
112mA
|
|
| Send current |
239mA
|
|
| Sensitivity |
-97dBm; -98dBm
|
|
| Temperature |
-40°C to 85°C
|
|
| Features |
Antenna Not Included; Integrated Bluetooth function; Over-the-air (OTA) update; U.FL
|
|
| Type of communications module |
IoT
|
|
| Bluetooth version |
BLE
|
|
| Kind of network |
WiFi
|
|
| Kind of antenna |
External
|
|
| Mounting Type |
SMD
|
|
| Dimensions |
18mm × 19.2mm × 3.2mm
|
|
| Frequency |
2.412GHz to 2.484GHz; 2.4GHz to 2.5GHz
|
|
| Program storage size |
4MB FLASH
|
|
| RAM Size |
448kB ROM
|
|
| Number of cores |
2
|
|
| Connector Type |
U.FL
|
|
| Modulation |
CCK; DSSS; OFDM
|
|
| Data Rate |
150Mbps
|
|
| Memory |
448kB ROM; 4MB Flash; 536kB SRAM
|
|
| Package |
38-SMD Module
|
Document details will be displayed in this section.
Compare prices across distributors
| Quantity | LCSC | DigiKey | Mouser | TME | Future Electronics |
|---|---|---|---|---|---|
| 1 |
$3.7937
Total: $3.79
|
$4.99
Total: $4.99
|
$5.60
Total: $5.60
|
$4.61
Total: $4.61
|
Not Available
at this quantity
|
| 10 |
$3.4198
Total: $34.20
|
$4.314
Total: $43.14
|
$5.00
Total: $50.00
|
$4.14
Total: $41.40
|
Not Available
at this quantity
|
| 25 |
$3.4198
Total: $85.50
|
$4.08
Total: $102.00
|
$4.17
Total: $104.25
|
$3.84
Total: $96.00
|
Not Available
at this quantity
|
| 30 |
$3.1973
Total: $95.92
|
$4.08
Total: $122.40
|
$4.17
Total: $125.10
|
$3.84
Total: $115.20
|
Not Available
at this quantity
|
| 100 |
$3.0134
Total: $301.34
|
$3.7585
Total: $375.85
|
$3.84
Total: $384.00
|
$3.34
Total: $334.00
|
Not Available
at this quantity
|
| 250 |
$3.0134
Total: $753.35
|
$3.56568
Total: $891.42
|
$3.70
Total: $925.00
|
$3.00
Total: $750.00
|
Not Available
at this quantity
|
| 500 |
$3.0134
Total: $1506.70
|
$3.56568
Total: $1782.84
|
$3.32
Total: $1660.00
|
$2.77
Total: $1385.00
|
Not Available
at this quantity
|
| 650 |
$2.8882
Total: $1877.33
|
$2.50
Total: $1625.00
|
$3.32
Total: $2158.00
|
$2.73
Total: $1774.50
|
$3.32
Total: $2158.00
|
| 1,000 |
$2.8882
Total: $2888.20
|
$2.50
Total: $2500.00
|
$3.15
Total: $3150.00
|
$2.73
Total: $2730.00
|
$3.32
Total: $3320.00
|
| 1,300 |
$2.8326
Total: $3682.38
|
$2.50
Total: $3250.00
|
$3.15
Total: $4095.00
|
$2.63
Total: $3419.00
|
$3.32
Total: $4316.00
|
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $3.7937 | $3.79 |
| 10 | $3.4198 | $34.20 |
| 30 | $3.1973 | $95.92 |
| 100 | $3.0134 | $301.34 |
| 650 | $2.8882 | $1877.33 |
| 1300 | $2.8326 | $3682.38 |
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $4.99 | $4.99 |
| 10 | $4.314 | $43.14 |
| 25 | $4.08 | $102.00 |
| 100 | $3.7585 | $375.85 |
| 250 | $3.56568 | $891.42 |
| 650 | $2.50 | $1625.00 |
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $5.60 | $5.60 |
| 10 | $5.00 | $50.00 |
| 25 | $4.17 | $104.25 |
| 100 | $3.84 | $384.00 |
| 250 | $3.70 | $925.00 |
| 500 | $3.32 | $1660.00 |
| 1000 | $3.15 | $3150.00 |
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $4.61 | $4.61 |
| 10 | $4.14 | $41.40 |
| 25 | $3.84 | $96.00 |
| 100 | $3.34 | $334.00 |
| 250 | $3.00 | $750.00 |
| 500 | $2.77 | $1385.00 |
| 650 | $2.73 | $1774.50 |
| 1300 | $2.63 | $3419.00 |
| Qty | Unit Price | Total |
|---|---|---|
| 650 | $3.32 | $2158.00 |
