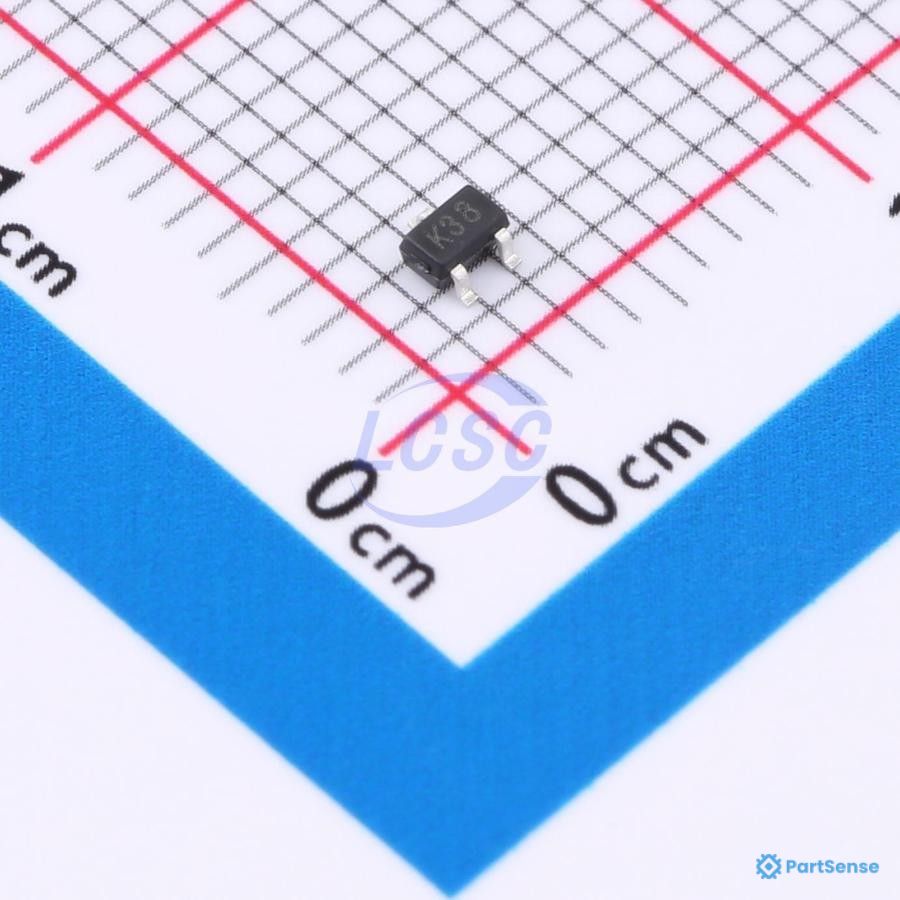

Legion PS23234032 - Power MOSFET, N Channel, 50 V, 210 mA, 3.5 ohm, SOT-323, Surface Mount
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
SMD N channel transistors

Legion BSS138W

Power MOSFET, N Channel, 50 V, 210 mA, 3.5 ohm, SOT-323, Surface Mount

Datasheet
2 distributors in stock 7 distributors MSL 1
Package / Case: SC-70; SOT-323 Voltage: 50; 50V; 55V Current: 200mA; 210; 210mA; 300mA Power: 300mW (Ta); 313mW (Tj); 340; 340mW Temp: -55°C to 150°C; 150; 150°C
Component Details
Manufacturer Legion
MPN BSS138W
PartSense # PS23234032
Availability 2 in-stock / 7 distributors
Classification
Category SMD N channel transistors
Product Status Active
MSL Level 1
