Micro Commercial BSS138-TP

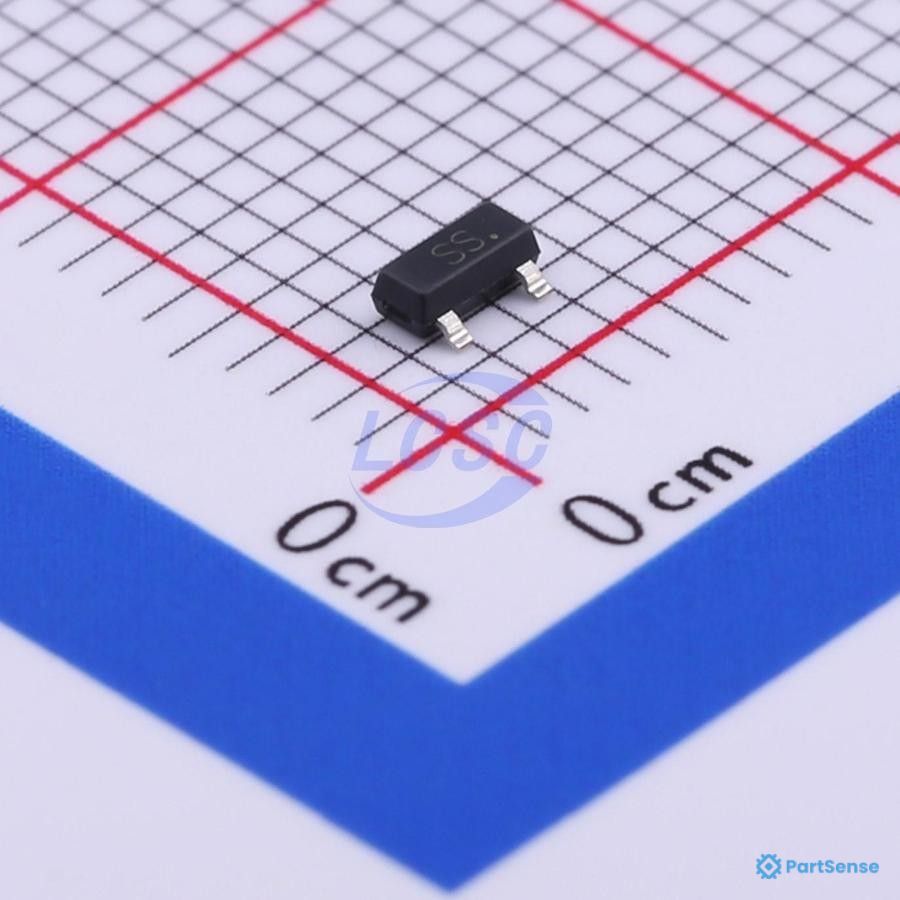

BSS138 Series 50 V 0.22 A N-Ch. Enhancement Mode Field Effect Transistor -SOT-23

Datasheet
5 distributors in stock 7 distributors MSL 1
Package / Case: SC-59; SOT-23; SOT-23-3; TO-236-3 Voltage: 50; 50V Current: 220; 220mA Power: 350; 350mW Temp: -55°C to 150°C; 150; 150°C
Component Details
Manufacturer Micro Commercial
MPN BSS138-TP
PartSense # PS36438234
Availability 5 in-stock / 7 distributors
Classification
Category SMD N channel transistors
Product Status Active
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Number
1 N-Channel
Drain-Source Voltage
50; 50V
Drain Current
220; 220mA
Drain-Source On-State Resistance
2.5Ω to 3.5Ω
Power
350; 350mW
Gate Threshold Voltage
1.5; 1.5V; 800mV
Capacitance
13pF; 27pF@25V
Reverse transfer capacitance
6pF
Temperature
-55°C to 150°C; 150; 150°C
Type
N-Channel
Rds test voltage
10; 10V
Pin Count
3; 3 Pins
Transistor Type
N Channel
Mounting Type
SMD
Transistor case style
SOT-23
Technology
MOSFET (Metal Oxide)
Drive voltage
10V; 4.5V
Rds on @ id, vgs
3.5Ω
Vgs @ id
1.5V@1mA
Gate-Source Voltage
±20V
Input capacitance @ vds
60pF@25V
Package
SC-59; SOT-23; SOT-23-3; TO-236-3
