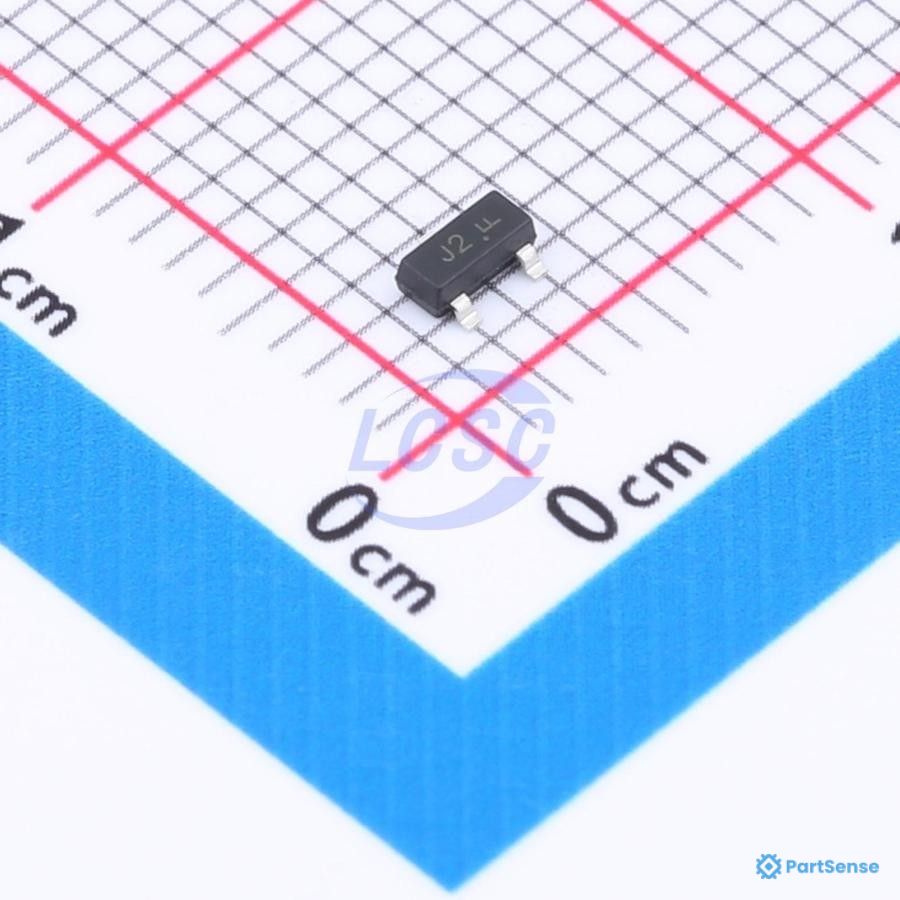

Power MOSFET, N Channel, 50 V, 220 mA, 1.6 ohm, SOT-23, Surface Mount
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Number |
1 N-channel
|
|
| Drain-Source Voltage |
50; 50V
|
|
| Drain Current |
220; 220mA; 360mA
|
|
| Drain-Source On-State Resistance |
1.6Ω to 4.5Ω
|
|
| Power |
350; 350mW; 350mW (Ta)
|
|
| Gate Threshold Voltage |
1.5V; 600; 600mV
|
|
| Gate Charge |
2.4nC; 2.4nC@10V; 4nC@10V
|
|
| Capacitance |
32pF; 6pF
|
|
| Reverse transfer capacitance |
3pF
|
|
| Temperature |
-55°C to 150°C; 150
|
|
| Type |
N-Channel
|
|
| Technology |
MOSFET (Metal Oxide)
|
|
| Drive voltage |
1.8V; 2.5V
|
|
| Rds on @ id, vgs |
1.6Ω
|
|
| Vgs @ id |
1.2V@250µA
|
|
| Gate-Source Voltage |
±12V
|
|
| Input capacitance @ vds |
58pF@25V
|
|
| Mounting Type |
SMD
|
|
| Package |
SC-59; SOT-23-3; SOT23; TO-236-3
|
|
| Type of transistor |
N-MOSFET
|
|
| Polarity |
N Channel; Unipolar
|
|
| Packaging |
Reel; Tape
|
|
| Transistor Type |
Enhancement; N Channel
|
|
| Rds test voltage |
5; 5V
|
|
| Pin Count |
3; 3 Pins
|
|
| On resistance rds |
1.6Ω
|
