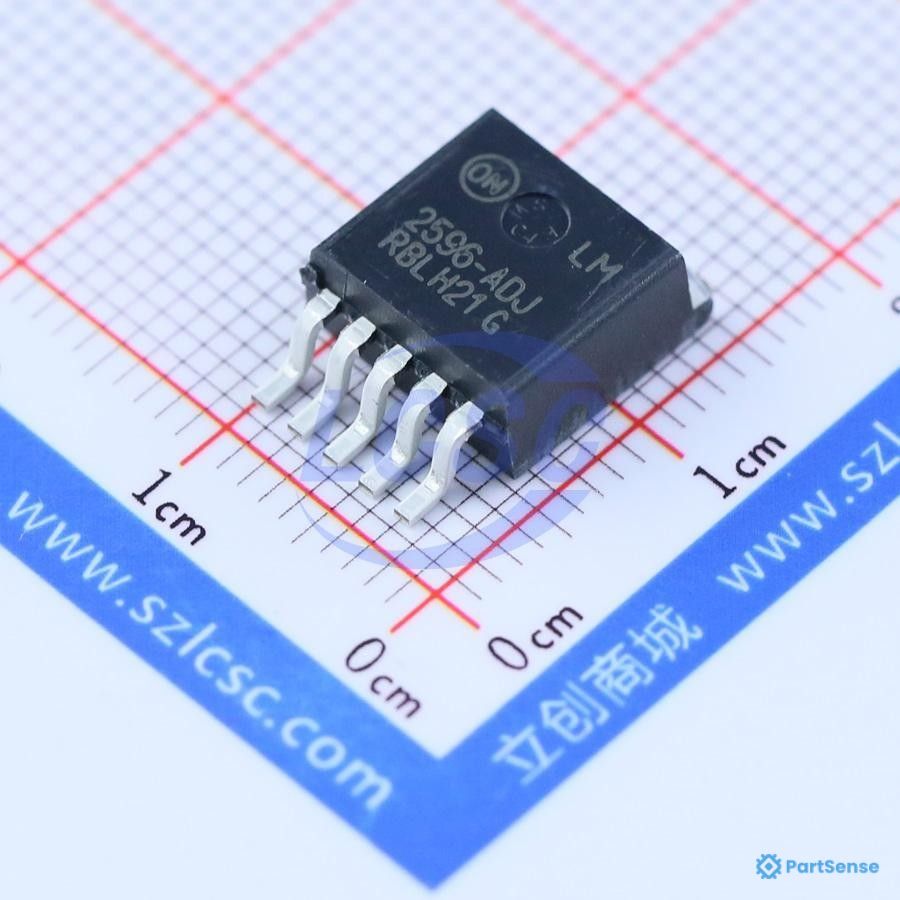

onsemi LM2596DSADJG

Buck, Boost, Buck-Boost Switching Regulator IC Positive or Negative Adjustable 1.23V 1 Output 3A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA

Datasheet
8 distributors in stock 8 distributors MSL 1
Package / Case: D2PAK (5 Leads + Tab); TO-263 (D2PAK) Voltage: 4.5V to 40V Current: 3A Temp: -40°C to 125°C
Component Details
Manufacturer onsemi
MPN LM2596DSADJG
PartSense # PS12744384
Availability 8 in-stock / 8 distributors
Classification
Category Voltage regulators - DC/DC circuits
Product Status Active
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Type of integrated circuit
PMIC
Kind of integrated circuit
DC/DC converter
Input Voltage
4.5V to 40V
Output Voltage
1.23V to 37V; 1.2V to 37V
Output Current
3A
Package
D2PAK (5 Leads + Tab); TO-263 (D2PAK)
Mounting Type
SMD
Frequency
150kHz
Topology
Boost; Buck; Buck-Boost
Number of Channels
1
Temperature
-40°C to 125°C
Packaging
Built-in; Tube
Output
Adjustable
No of outputs
1
Efficiency
73
Pin Count
5
Dc dc converter ic case
TO-263 (D2PAK)
Switching frequency typ
150kHz
Regulator output type
Adjustable
Function
Step-Up/Step-Down; Step-down type
Synchronous rectifier
No
Number of outputs
1
Quiescent Current
5mA
Features
Cycle-by-cycle current limiting; Overcurrent Protection
Configuration
Positive or Negative
