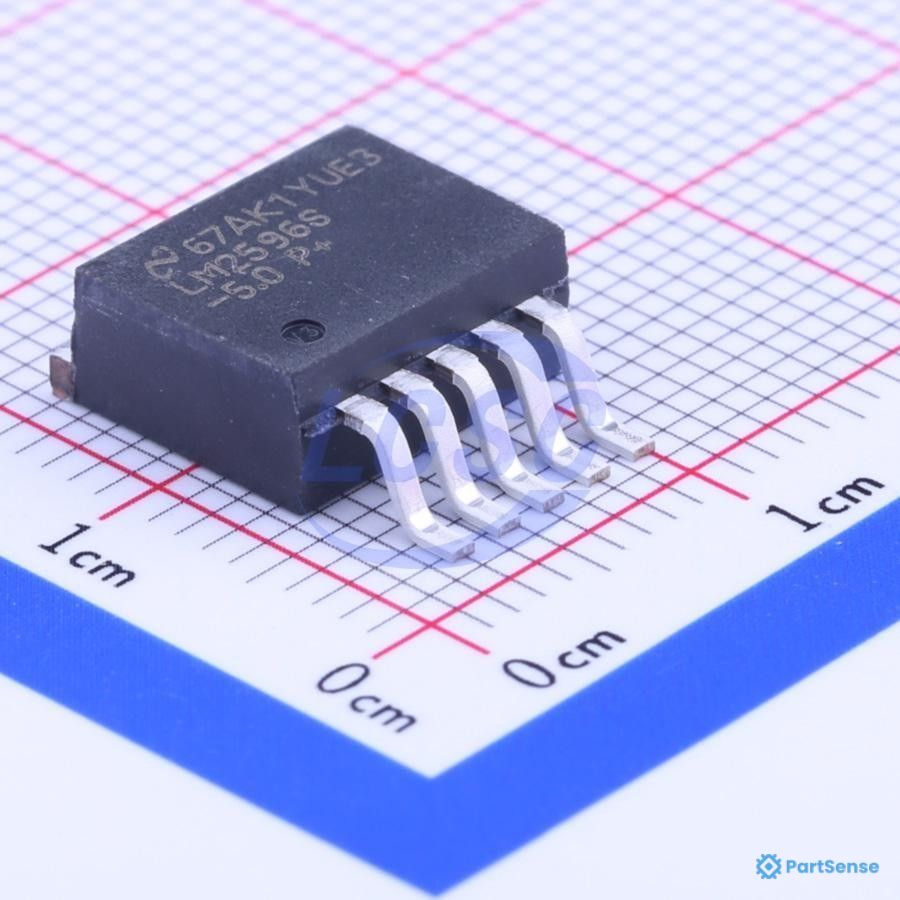

Texas Instruments PS84213846 - Buck Switching Regulator IC Positive Fixed 5V 1 Output 3A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Voltage regulators - DC/DC circuits

Texas Instruments LM2596S-5.0/NOPB

Buck Switching Regulator IC Positive Fixed 5V 1 Output 3A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA

Datasheet
4 distributors in stock 5 distributors MSL 3
Package / Case: D2PAK (5 Leads + Tab); TO-263 (DDPAK-5); TO-263-6; TO263-5 Voltage: 4.5V to 40V Current: 3A Temp: -40°C to 125°C
Component Details
Manufacturer Texas Instruments
MPN LM2596S-5.0/NOPB
PartSense # PS84213846
Availability 4 in-stock / 5 distributors
Classification
Category Voltage regulators - DC/DC circuits
Product Status Active
MSL Level 3
