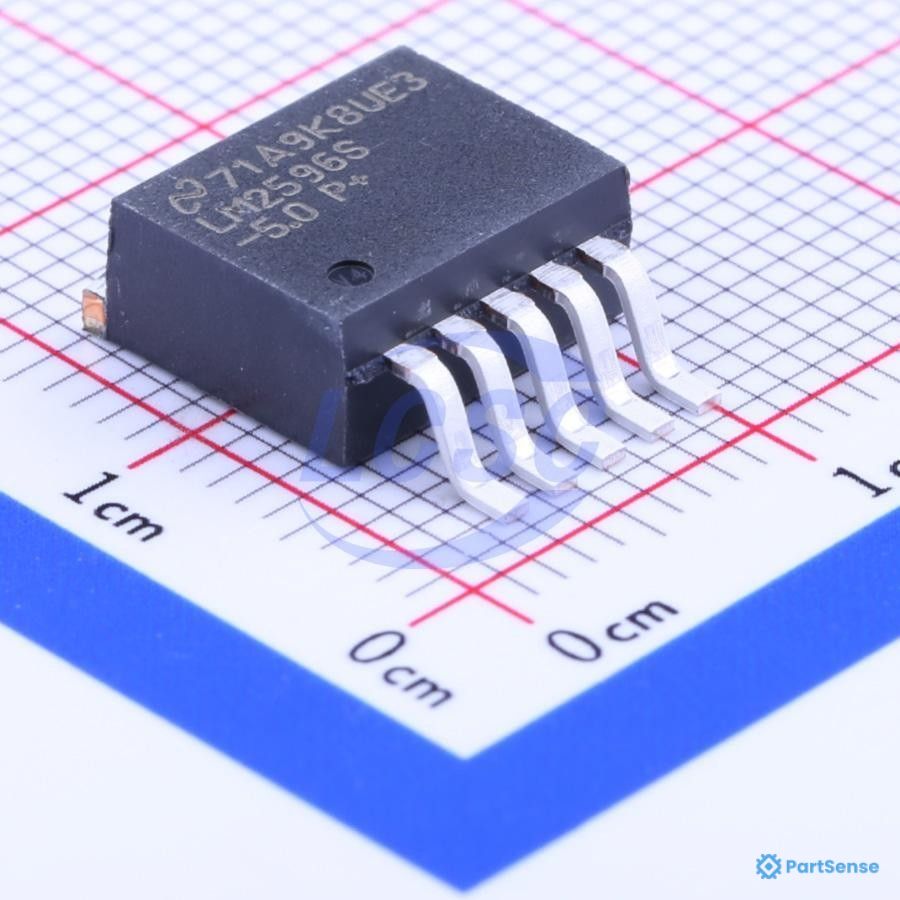

Texas Instruments PS47094344 - Buck Switching Regulator IC Positive Fixed 5V 1 Output 3A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Voltage regulators - DC/DC circuits

Texas Instruments LM2596SX-5.0/NOPB

Buck Switching Regulator IC Positive Fixed 5V 1 Output 3A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA

Datasheet
3 distributors in stock 7 distributors MSL 3
Package / Case: D2PAK (5 Leads + Tab); TO-263 (D2PAK); TO-263 (DDPAK-5) Voltage: 4.5V to 40V Current: 3A Temp: -40°C to 125°C
Component Details
Manufacturer Texas Instruments
MPN LM2596SX-5.0/NOPB
PartSense # PS47094344
Availability 3 in-stock / 7 distributors
Classification
Category Voltage regulators - DC/DC circuits
Product Status Active
MSL Level 3

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Type of integrated circuit
PMIC
Kind of integrated circuit
DC/DC converter
Input Voltage
4.5V to 40V
Output Voltage
5V
Output Current
3A
Package
D2PAK (5 Leads + Tab); TO-263 (D2PAK); TO-263 (DDPAK-5)
Mounting Type
SMD
Frequency
150kHz
Topology
Buck
Number of Channels
1
Temperature
-40°C to 125°C
Packaging
Built-in; Reel; Tape
Manufacturer standard package
500pcs.
Pin Count
5
Efficiency
80
Dc dc converter ic case
TO-263 (D2PAK)
Output
Fixed
Switching frequency typ
150kHz
No of outputs
1
Regulator output type
Fixed
Function
Step-Down; Step-down type
Configuration
Positive
Number of outputs
1
Synchronous rectifier
No
Quiescent Current
5mA
Features
Overcurrent Protection
