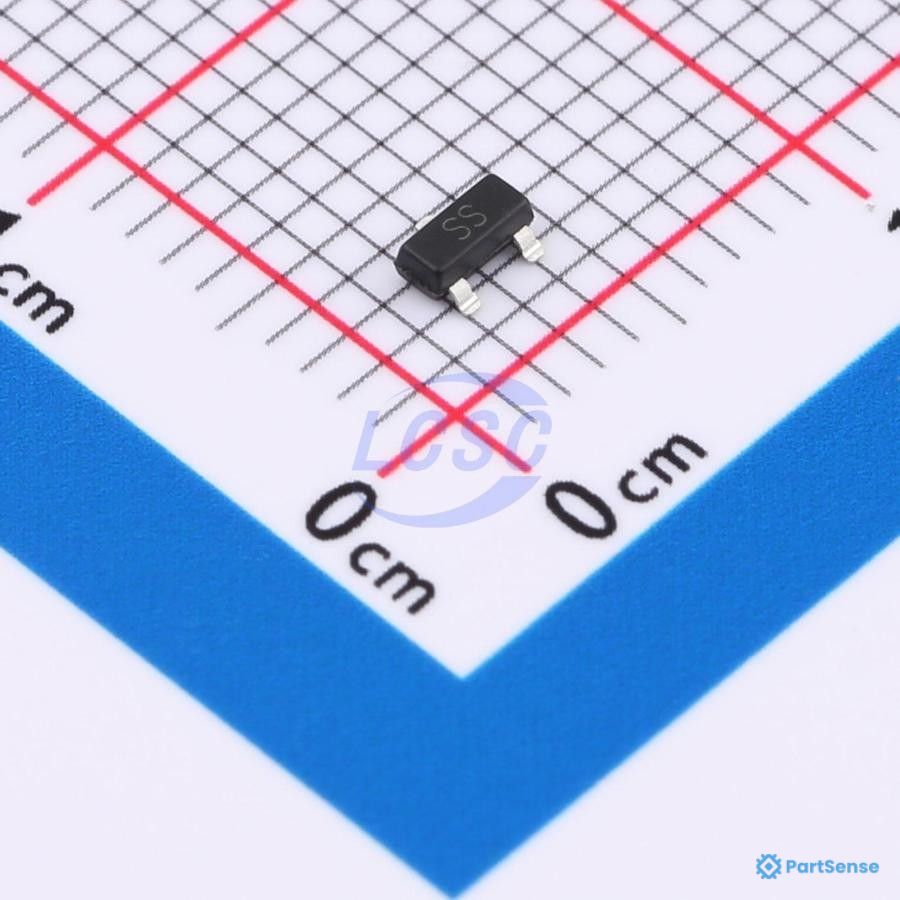

onsemi BSS138

Power MOSFET, N Channel, 50 V, 220 mA, 3.5 ohm, SOT-23, Surface Mount

Datasheet
This product is discontinued
5 distributors in stock 8 distributors MSL 1
Package / Case: SC-59; SOT-23-3; SOT23; TO-236-3 Voltage: 50; 50V Current: 1.5A; 220; 220mA; 272mA; 300; 300mA Power: 300; 300mW; 350mW; 350mW (Ta); 360; 360mW Temp: -55°C to 155°C; 150
Component Details
Manufacturer onsemi
MPN BSS138
PartSense # PS74962128
Availability 5 in-stock / 8 distributors
Classification
Category SMD N channel transistors
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Type
N-Channel
Technology
MOSFET (Metal Oxide); TRENCH POWER MV
Drain-Source Voltage
50; 50V
Drain Current
1.5A; 220; 220mA; 272mA; 300; 300mA
Drive voltage
10V; 4.5V
Rds on @ id, vgs
3Ω
Vgs @ id
1.6V@250µA
Gate Charge
1.7nC; 2.4nC; 2.4nC@10V
Gate-Source Voltage
±20V
Input capacitance @ vds
27pF@25V
Power
300; 300mW; 350mW; 350mW (Ta); 360; 360mW
Temperature
-55°C to 155°C; 150
Mounting Type
SMD
Package
SC-59; SOT-23-3; SOT23; TO-236-3
Type of transistor
N-MOSFET
Polarity
N Channel; Unipolar
Drain-Source On-State Resistance
2.5Ω to 6Ω
Packaging
Reel; Tape
Transistor Type
Enhancement; N Channel
Features of semiconductor devices
Logic level
Rds test voltage
10; 10V
Gate Threshold Voltage
1.3; 1.3V; 1.5; 1.5V
