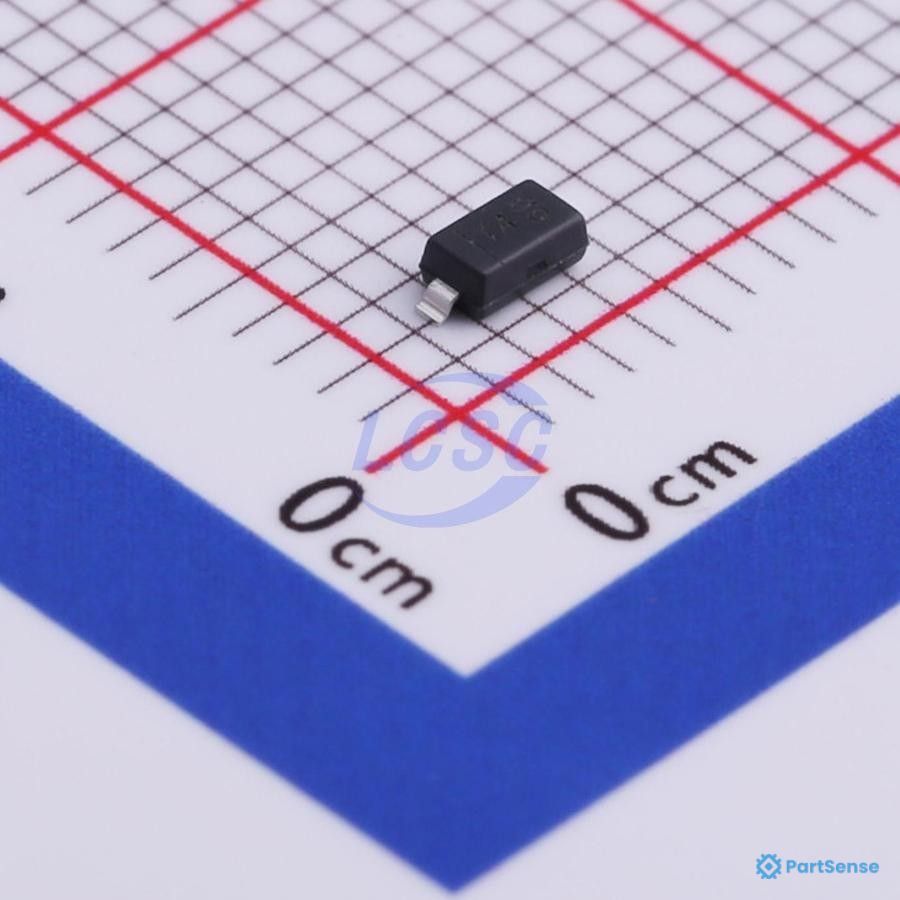

1N4148W Series 400 mW 100 V 300 mA SMT Switching Diode - SOD-123
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Type of diode |
Switching
|
|
| Mounting Type |
SMD
|
|
| Reverse stand off voltage |
100V
|
|
| Load current |
300mA
|
|
| Reverse recovery time |
4ns; Fast Recovery =< 500ns; Unknown Value
|
|
| Semiconductor structure |
Single diode
|
|
| Features of semiconductor devices |
Small signal
|
|
| Package |
SOD123
|
|
| Forward Voltage |
1.25V; 1.25V@150mA
|
|
| Packaging |
Reel; Tape
|
|
| Applications |
Automotive industry
|
|
| Current average rectified |
300mA
|
|
| Forward surge current |
2A
|
|
| Pin Count |
2
|
|
| Reverse Voltage |
100V
|
|
| Product range |
1N4448W Series
|
|
| Configuration |
Single; Standalone
|
|
| Qualification |
AEC-Q101
|
|
| Temperature |
-55°C to 150°C; -65°C to 150°C; 150°C
|
|
| Technology |
Standard
|
|
| Reverse leakage current |
1µA@75V
|
|
| Capacitance @ vr, f |
2pF@0V, 1MHz
|
|
| Grade |
Automotive
|
|
| Power |
400mW
|
