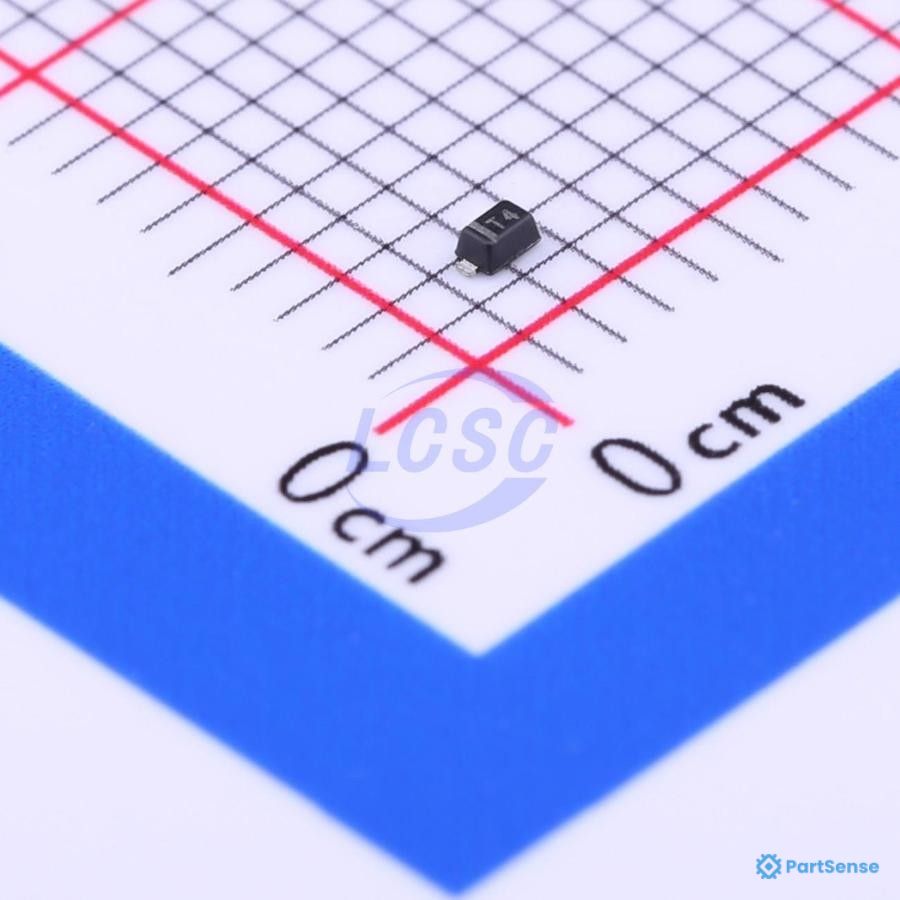

1N4148WT Series 2 A 80 V 150 mW Fast Switching Diode Surface Mount - SOD-523
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Type of diode |
Switching
|
|
| Mounting Type |
SMD
|
|
| Reverse stand off voltage |
80V
|
|
| Load current |
250mA
|
|
| Reverse recovery time |
4ns
|
|
| Semiconductor structure |
Single diode
|
|
| Features of semiconductor devices |
Small signal
|
|
| Package |
SC-79; SOD523
|
|
| Forward Voltage |
1.25V; 1.25V@150mA; 1V@50mA
|
|
| Packaging |
Reel; Tape
|
|
| Current average rectified |
125mA
|
|
| Forward surge current |
2A
|
|
| Pin Count |
2
|
|
| Reverse Voltage |
100V; 80V
|
|
| Product range |
1N4148
|
|
| Configuration |
Single; Standalone
|
|
| Temperature |
-65°C to 150°C; 150°C
|
|
| Power |
150mW
|
|
| Non repetitive peak forward surge current |
2A
|
|
| Reverse leakage current |
1µA@75V
|
|
| Technology |
Standard
|
|
| Type |
Any Speed; Small Signal =< 200mA (Io)
|
|
| Capacitance @ vr, f |
2pF@0V, 1MHz
|
