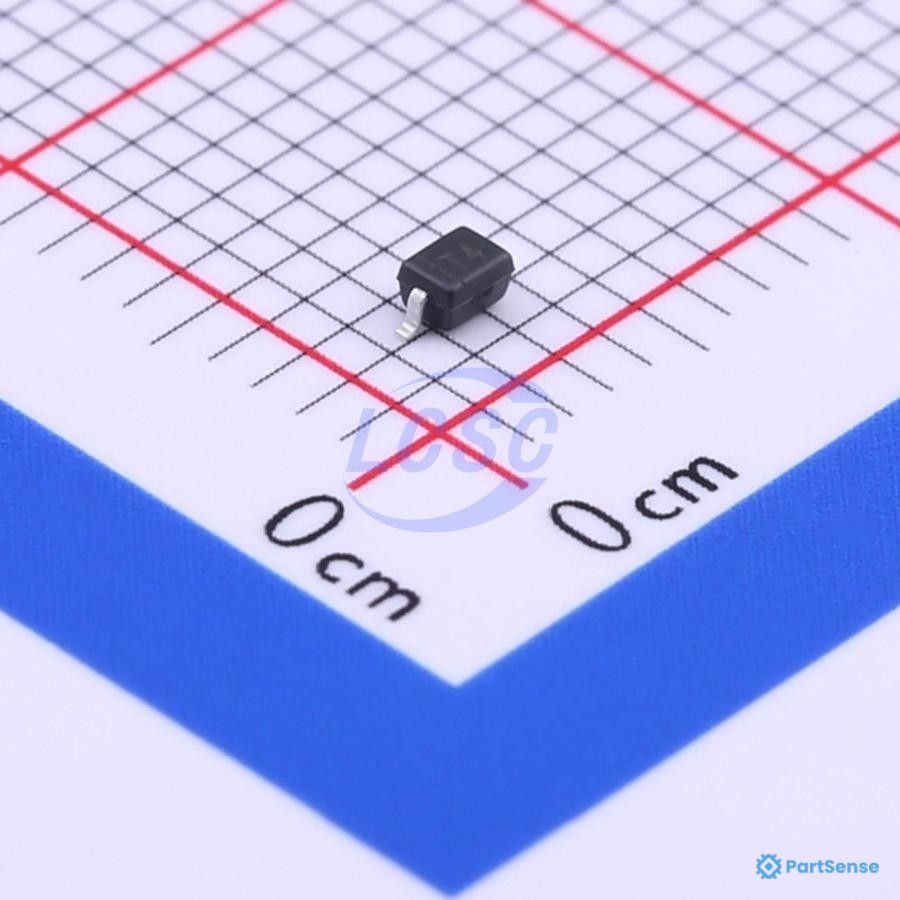

1N4148WS Series 2 A 75 V 200 mW Surface Mount Fast Switching Diode - SOD-323
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Type of diode |
Switching
|
|
| Mounting Type |
SMD
|
|
| Reverse stand off voltage |
75V
|
|
| Load current |
150mA
|
|
| Reverse recovery time |
4ns
|
|
| Semiconductor structure |
Single diode
|
|
| Features of semiconductor devices |
Small signal
|
|
| Capacitance |
2pF
|
|
| Package |
SC-76; SOD323
|
|
| Forward Voltage |
1.25V; 1.25V@150mA
|
|
| Max load current |
300mA
|
|
| Peak pulse current |
2A
|
|
| Packaging |
Reel; Tape
|
|
| Current average rectified |
150mA
|
|
| Forward surge current |
4A
|
|
| Pin Count |
2
|
|
| Reverse Voltage |
75V
|
|
| Product range |
1N4148WS Series
|
|
| Configuration |
Independent; Single
|
|
| Temperature |
-65°C to 150°C; 150°C
|
|
| Technology |
Standard
|
|
| Type |
Any Speed; Small Signal =< 200mA (Io)
|
|
| Reverse leakage current |
1µA@75V
|
|
| Capacitance @ vr, f |
2pF@0V, 1MHz
|
|
| Power |
200mW
|
|
| Non repetitive peak forward surge current |
2A
|
