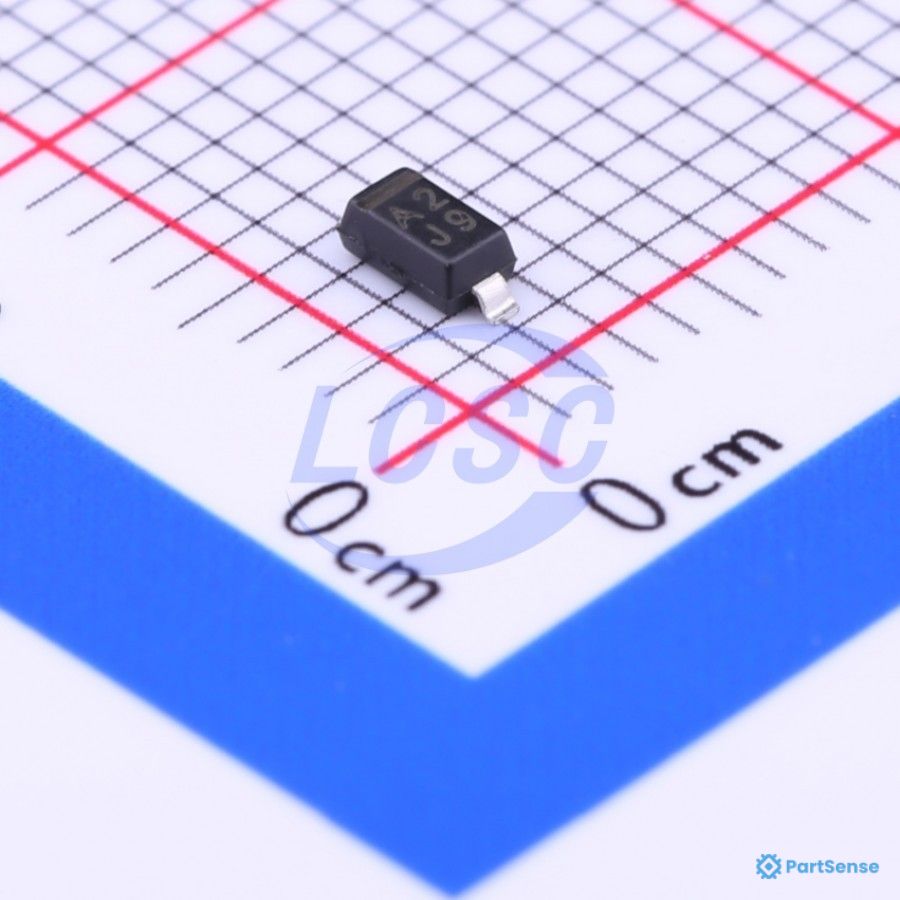

Small Signal Switching Diodes 75V, 300mA Small Signal Fast Switching Diode
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Type of diode |
Switching
|
|
| Mounting Type |
SMD
|
|
| Reverse stand off voltage |
100V
|
|
| Load current |
250mA
|
|
| Reverse recovery time |
4ns
|
|
| Semiconductor structure |
Single diode
|
|
| Features of semiconductor devices |
Fast switching; Small signal
|
|
| Capacitance |
1.5pF
|
|
| Package |
SOD123
|
|
| Forward Voltage |
1.2V; 1.2V@100mA
|
|
| Peak pulse current |
500mA
|
|
| Packaging |
7 inch reel
|
|
| Reverse leakage current |
100µA; 100µA@100V
|
|
| Manufacturer standard package |
3000pcs.
|
|
| Current average rectified |
150mA
|
|
| Forward surge current |
2A
|
|
| Pin Count |
2
|
|
| Reverse Voltage |
100V; 75V
|
|
| Product range |
1N4148
|
|
| Configuration |
1 Independent; Single
|
|
| Temperature |
-55°C to 150°C; 150°C
|
|
| Technology |
Standard
|
|
| Type |
Any Speed; Small Signal =< 200mA (Io)
|
|
| Capacitance @ vr, f |
4pF@0V, 1MHz
|
|
| Power |
350mW
|
|
| Non repetitive peak forward surge current |
2A
|
