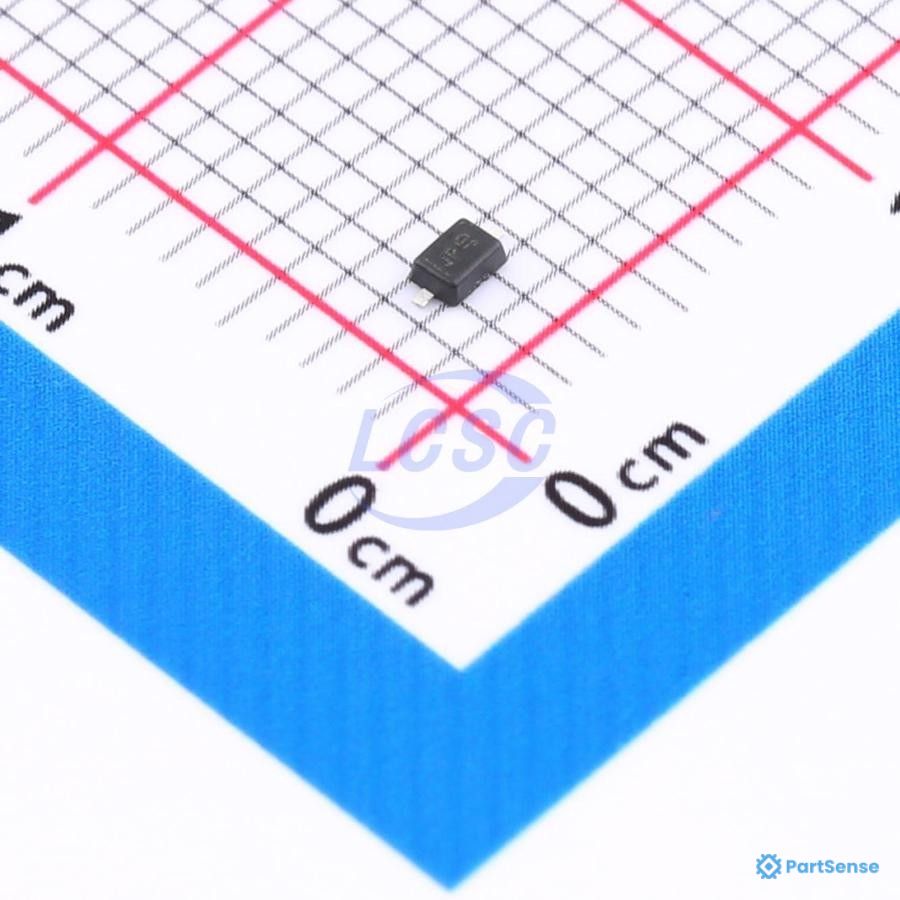

1N4148 Series 100 V 250 mA 400 mW Surface Mount Fast Switching Diode - SOD-323F
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Type of diode |
Switching
|
|
| Mounting Type |
SMD
|
|
| Reverse stand off voltage |
100V
|
|
| Load current |
125mA
|
|
| Reverse recovery time |
4ns; Fast Recovery =< 500ns; Unknown Value
|
|
| Semiconductor structure |
Single diode
|
|
| Features of semiconductor devices |
Small signal
|
|
| Capacitance |
1.5pF
|
|
| Package |
SC-90; SOD-323F
|
|
| Forward Voltage |
1.25V; 1.25V@150mA
|
|
| Max load current |
250mA
|
|
| Peak pulse current |
500mA
|
|
| Packaging |
Reel; Tape
|
|
| Current average rectified |
250mA
|
|
| Forward surge current |
4A
|
|
| Pin Count |
2
|
|
| Reverse Voltage |
100V
|
|
| Configuration |
Single; Standalone
|
|
| Temperature |
-55°C to 150°C; -65°C to 150°C; 150°C
|
|
| Technology |
Standard
|
|
| Reverse leakage current |
500nA@80V
|
|
| Capacitance @ vr, f |
1.5pF@0V, 1MHz
|
|
| Power |
400mW
|
|
| Non repetitive peak forward surge current |
4A
|
